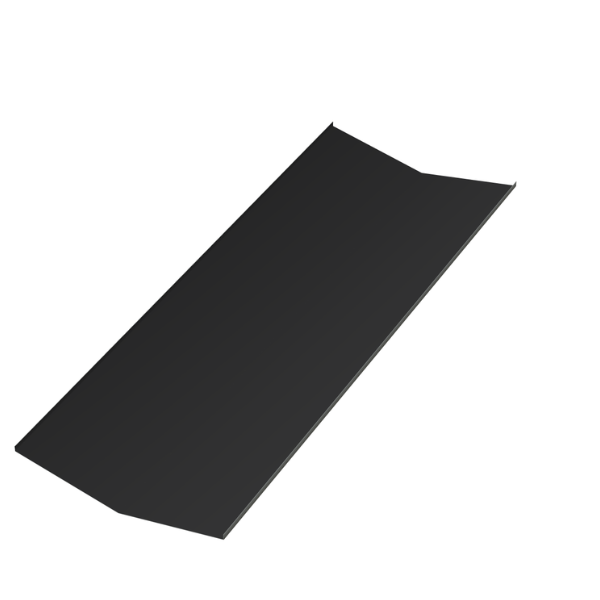

COLORBOND® Valley Iron 190mm Specifications
| Profile | 10 / 190 / 190 / 10mm, single fold, open V |
| Material | Genuine BlueScope COLORBOND® steel, G300 |
| Base metal thickness | .55 BMT |
| Lengths | 1.0m to 6.5m, cut to length in 100mm increments |
| Cut tolerance | +200mm / 0mm |
| Colours | 21 COLORBOND® colours |
| Roof compatibility | Corrugated, TRIMDEK®, KLIP-LOK®, tiled roofs |
| Fixing | Pop rivets and silicone |
Is 190mm the Right Size?
190mm is a valley for most domestic roofs. Go larger where two big roof areas drain into one valley, or where the pitch is low and water sits rather than runs.
- ✔ 190mm each side (this product): standard domestic valley
- ✔ Custom girth or tapered: custom flashing order form above, emailed to sales@metalroofingonline.com.au
How to Measure and Order
- ✔ Measure the valley from ridge to gutter along the slope, not off the plan
- ✔ Match the colour of the roof it sits under. On a tiled roof, match the tile or the gutter
Installing Valley Iron
- ✔ Goes down before the roof covering, over the sarking and valley boards
- ✔ Start at the gutter and work up so each length laps over the one below
- ✔ Rivet and seal the laps with silicone. Keep fixings out of the water path
- ✔ Cut sheets or tiles back so the centre of the valley stays clear
COLORBOND® or ZINCALUME®?
The valley is mostly hidden, so many roofers use ZINCALUME® valley iron. Choose COLORBOND® where the valley is visible from the ground, on a tiled roof, or when every component should match.
See all valley flashings, barge capping and COLORBOND® guttering.
Valley Iron FAQ
Will it fit under a tiled roof?
Yes. It is a plain folded V, so it sits under concrete tiles as well as sheet profiles.
What is the longest length you cut?
6.5m.
Order COLORBOND® Valley Iron 190mm Online - Cut to Length, Colour-Matched, Delivered.
