Klip Lok Fixing Clip: The Ultimate Screwless Roofing System with Klip-Lok 700®
When it comes to durability, clean aesthetics, and weather-tight performance, the Klip-Lok 700® fixing clip delivers. This concealed fixing clip system locks each rib into place without the need for visible screws—creating a sleek finish perfect for modern roofing projects.
Why Choose Klip-Lok 700 Fixing Clips?
Engineered for maximum grip and minimal maintenance, Klip-Lok fixing clips are essential for securely fastening klip lok roofing sheets. Designed specifically for the klip lok 700 profile, these clips allow thermal expansion while maintaining a strong mechanical hold.
Whether you’re working with residential or commercial projects, klip lok 700 fixing clips provide a concealed fix roofing method that’s efficient, watertight, and visually seamless.

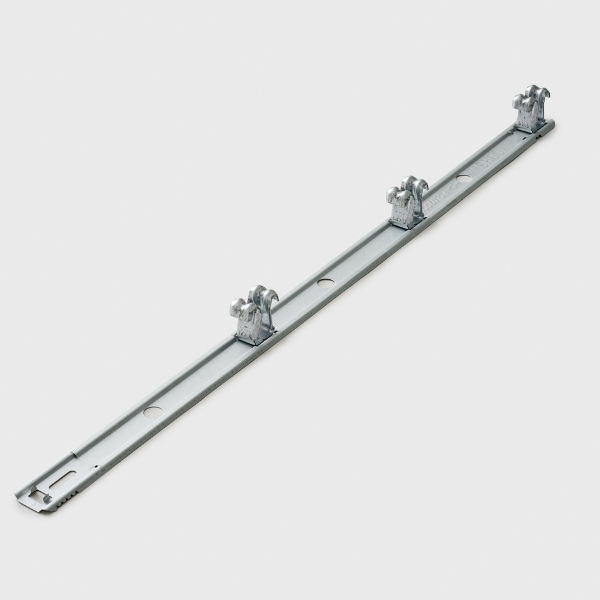

What Is a Klip-Lok Fixing Clip?

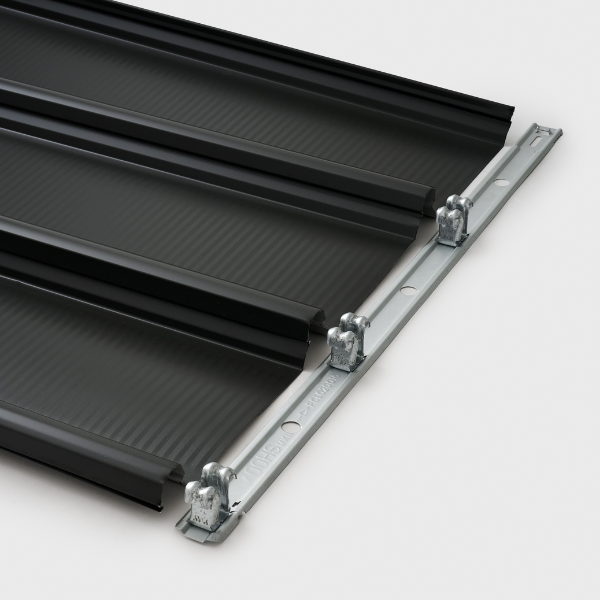

A klip lok fixing clip is a concealed fixing roof clip that clamps the rib of the klip lok profile to the roof structure—no screw penetration required. This not only preserves the integrity of the roofing sheets, but also prevents corrosion over time.
You’ll also find lok 700 fixing clips superior for low-pitch roofs and high wind zones, where reliability and water resistance are non-negotiable.
How Many Kliplok Clips Per m²?
One of the most frequently asked questions is: how many kliplok clips per m2?
The answer depends on:
-
Wind region (N1–N4 or C1–C4)
-
Span and sheet length
-
Whether you're using steel or timber battens
As a general rule, you’ll need between 3 to 5 fixing clips per m². Refer to the manufacturer’s technical manual or use the klip lok 700 clip spacing chart to get it right the first time.
How to Install Klip Lok Fixing Clips
Wondering how to install klip lok fixing clips?
Follow these basic steps:
-
Mark the batten spacing based on your wind load requirements.
-
Secure the klip lok fixing clip at each marked location.
-
Lay the klip lok roofing sheets over the clips and press firmly to engage.
-
Use a klip lok tool to properly seat and secure the clip.
We also recommend downloading our Klip-Lok Installation Guide PDF for step-by-step visuals.
Klip Lok Installation Spacing Explained
Getting klip lok installation spacing right is crucial. Spacing depends on roof pitch, wind classification, and structure type. Improper spacing can lead to lift or leakage. For most residential applications, spacing between 900mm and 1200mm is standard.
Klip Lok 406 vs Klip Lok 700
Let’s clear up the difference between klip lok 406 vs klip lok 700:
|
Feature |
Klip Lok 406 |
Klip Lok 700 |
|---|---|---|
|
Coverage |
406mm |
700mm |
|
Rib Height |
41mm |
43mm |
|
Span Capacity |
Moderate |
Higher |
|
Preferred For |
Older builds |
New construction |
If you're starting fresh, klip lok 700 fixing clips are the way to go. They're compatible with modern architecture and reduce installation time thanks to wider coverage.
💡 Also searched as: klip lok 406 vs 700
The Klip Lok Roof Profile Advantage
The klip lok roof profile features bold ribs and a wide coverage base, ideal for large roof spans with minimal structural supports. When used with kliplok 700 clips, it offers superior water resistance and wind uplift performance.
Complete Your Install with Klip Lok Accessories
To get the best results, pair your klip lok fixing clips with:
-

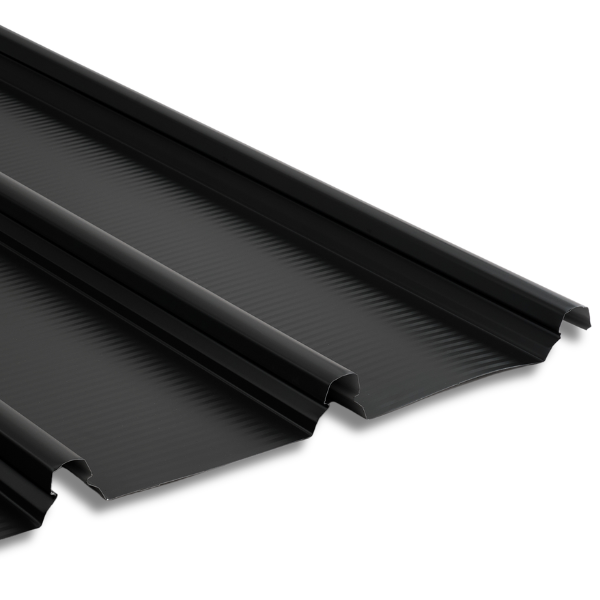

COLORBOND® or ZINCALUME® klip lok roofing sheets
-
Foam infills for waterproofing
-
Klip lok tool for correct seating
-
Saddles and flashings tailored for klip lok
Explore our full range of klip lok accessories for a complete solution.
Why Klip Lok Is the Screwless Roofing System of Choice
A screwless roofing system like Klip-Lok 700 improves the longevity, appearance, and performance of your roof. It’s fast to install, virtually maintenance-free, and trusted across Australia’s toughest conditions.
Order Klip-Lok Fixing Clips Online
Ready to buy? Place your order now and get fast delivery Australia-wide from Metal Roofing Online. All our klip lok fixing clips are compatible with klip lok 700 roofing sheets, ensuring a secure and seamless fit.
🛒 Order today to complete your concealed fix roofing project with genuine, high-performance components.
