LYSAGHT® SPANDEK® Roofing and Wall Cladding

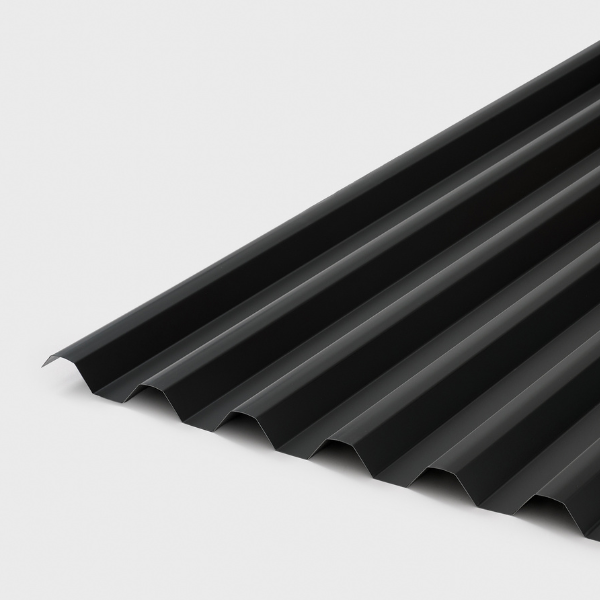

COLORBOND® SPANDEK® is a strong, lightweight steel profile used for roofing and wall cladding across residential, commercial and industrial projects. Its bold, square-corrugated shape creates a more defined appearance than traditional corrugated roofing while providing practical coverage and dependable performance.

Manufactured from genuine BlueScope COLORBOND® steel, SPANDEK® roofing sheets are supplied in .42 BMT and custom cut to the length required for your project. Each sheet provides a nominal cover width of 700mm and a nominal rib height of 24mm.

SPANDEK® Profile Specifications

• Material: Genuine BlueScope COLORBOND® steel

• Profile: LYSAGHT® SPANDEK®

• Base metal thickness: .42 BMT

• Nominal cover width: 700mm

• Nominal rib height: 24mm

• Minimum roof pitch: 2°, subject to design provisions being met

• Applications: Roofing and wall cladding

• Fixing method: Pierce-fixed to timber or steel supports

• Sheet lengths: Custom cut to your selected length

• Colours: Available in the COLORBOND® MATT roofing and cladding colour range offered for your delivery location

Always confirm the required sheet thickness, support spacing, fasteners and installation method for the building design and local conditions before ordering.

Why COLORBOND® SPANDEK® Is an Ideal Choice for Roofing and Wall Cladding

SPANDEK® combines the durability of COLORBOND® steel roofing sheets with a bold, contemporary profile. The pronounced ribs create strong shadow lines, making it a popular choice for modern homes, extensions, garages, sheds and commercial buildings.

Key benefits include:

• Strong yet lightweight steel roof and wall cladding

• Suitable for residential and commercial applications

• Bold square-corrugated profile

• Roofing capability from a minimum 2° pitch, subject to design requirements

• 700mm cover width for efficient coverage

• Custom-cut sheets that can reduce unnecessary joins and waste

• A choice of genuine COLORBOND® steel colours

• Compatible with timber and steel support systems

• Suitable for both roofing and vertical wall cladding

Roofing for Low-Pitch Applications

LYSAGHT® SPANDEK® can be installed on roof slopes as low as 2°, provided the relevant design and installation requirements are satisfied. This makes it suitable for many low-pitch roofs where a traditional corrugated roofing profile may not be appropriate.

The finished roof pitch must account for construction tolerances, support deflection, settlement and other site conditions. Have the roof design and required support spacings confirmed by a suitably qualified building professional before ordering or installing the sheets.

SPANDEK® Wall Cladding

SPANDEK® is not limited to roof applications. The profile can also be installed as steel wall cladding to create a strong, modern exterior finish.

Its deeper square ribs give walls more visual definition than conventional rounded corrugated sheets. This makes COLORBOND® SPANDEK® suitable for feature walls, garages, sheds, workshops, commercial buildings and contemporary residential designs.

The sheets may be installed vertically where appropriate for the building design. Correct flashings, support spacing and fastener selection remain essential for a secure and weather-resistant result.

Impact-Resistant Steel Roofing and Walling

The formed steel profile provides a strong exterior surface suited to demanding Australian building applications. Its durability and resistance to everyday impact make SPANDEK® a practical option for roofing and wall cladding where strength, coverage and appearance are all important.

Performance still depends on selecting the correct sheet thickness, fasteners and support spacing for the site’s wind classification, exposure conditions and building design.

Genuine COLORBOND® Steel

These SPANDEK® sheets are manufactured from genuine BlueScope COLORBOND® prepainted steel. COLORBOND® steel combines a steel base with protective metallic and prepainted coatings designed for exterior roofing and walling applications.

The available colour range makes it easier to coordinate your SPANDEK® roof or walls with matching gutters, fascia, downpipes and COLORBOND® flat sheet 1200mm flashings. Product suitability and warranty conditions can vary according to location, environmental exposure, application and distance from breaking surf or other marine influences.

Custom-Cut SPANDEK® Roofing Sheets

Every sheet is cut to the length entered when ordering. Ordering accurately measured sheets can reduce unnecessary end laps, minimise material waste and create a cleaner finished roof or wall.

Before placing your order:

1. Confirm the required roof or wall measurements.

2. Allow for the correct overhangs and installation details.

3. Check the roof pitch and support spacings.

4. Select the required COLORBOND® colour.

5. Enter each sheet length and quantity carefully.

6. Confirm delivery access for long roofing sheets.

Cut-to-length roofing is made specifically for your order, so measurements should be checked before checkout.

Fixings and Accessories

SPANDEK® is a pierce-fixed profile secured directly through the sheet into timber or steel supports. The required roofing screws will depend on the support material, sheet specification and site conditions.

A complete installation may also require:

• COLORBOND® roofing screws for timber or steel

• Profiled SPANDEK® foam infill strips

• Ridge capping

• COLORBOND® barge capping roof flashing

• COLORBOND® corner roof flashing and other roof flashings

• COLORBOND® flat sheet 750mm for custom flashings

• COLORBOND® flat sheet 900mm roof flashing material

Use compatible materials and fasteners throughout the roofing system. Incorrect fasteners or contact with incompatible metals can affect performance and contribute to premature corrosion.

Frequently Asked Questions

What is the cover width of SPANDEK®?

Each SPANDEK® sheet has a nominal cover width of 700mm. This is the width covered after the sheets are correctly lapped, not necessarily the total physical width of the sheet.

What is the minimum roof pitch for SPANDEK®?

The minimum roof slope is 2°, subject to the applicable design provisions being met. The finished roof must maintain the required pitch after allowing for construction tolerances and deflection.

Can SPANDEK® be used as wall cladding?

Yes. SPANDEK® is suitable for both roofing and wall cladding. Its bold square-rib profile works particularly well on contemporary homes, sheds, garages and commercial buildings.

Is SPANDEK® suitable for residential roofing?

Yes. Although the profile has long been used for commercial and industrial buildings, it is also a popular choice for residential roofs, extensions, patios, garages and projects using COLORBOND® barge capping for Trimdek roofs.

Is SPANDEK® the same as traditional corrugated roofing?

No. Traditional corrugated roofing has rounded waves, while SPANDEK® has a bolder trapezoidal or square-corrugated profile. SPANDEK® also provides a 700mm cover width and can suit lower roof pitches when installed in accordance with the relevant design requirements.

Are the sheets cut to length?

Yes. Your COLORBOND® SPANDEK® roofing and walling sheets are custom cut to the length selected when ordering.

Can I order matching flashings?

Yes. Matching COLORBOND® ridge capping, COLORBOND® MATT barge capping roof flashing, apron flashings and custom flashings are available to complete the roof. Select the same COLORBOND® colour for a coordinated finish.

How many SPANDEK® sheets do I need?

Divide the roof or wall width by the nominal 700mm cover width, then round up to the next full sheet. Complex buildings, hips, valleys and penetrations may require additional material. Confirm quantities with your installer or building professional before ordering.

Order COLORBOND® SPANDEK® Online

Select your delivery state, COLORBOND® colour, sheet length and quantity above. Your SPANDEK® roofing or wall cladding will be cut to order and delivered directly to your nominated site where available.
