COLORBOND® Fascia Victoria Colorbond Fascia Install Photo Fascia Installation Diagram COLORBOND® COLORBOND® Fascia

Please select a state in the header.


Please select a state in the header.


COLOUR SELECTED:

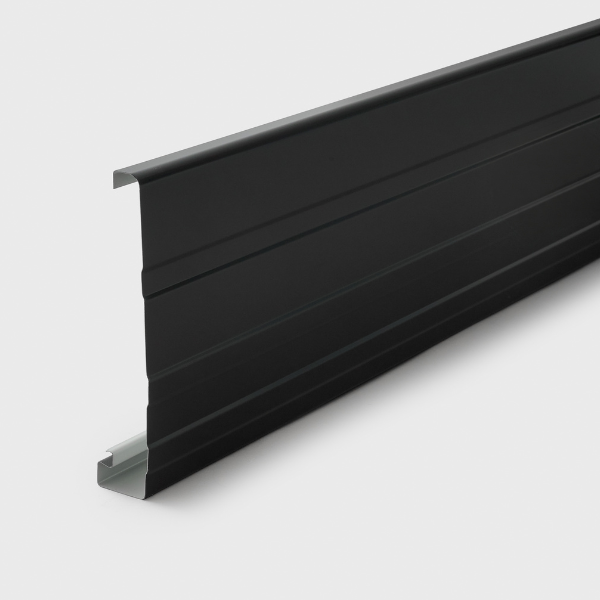

COLORBOND® Fascia provides clean lines and the smart alternative for all new homes. Constructed from COLORBOND® steel it will not contort, shrink or decay making it essentially maintenance free.



This COLORBOND® fascia is suited for both tiled and metal roofs.

What are some of the accessories I require when purchasing this COLORBOND® fascia?

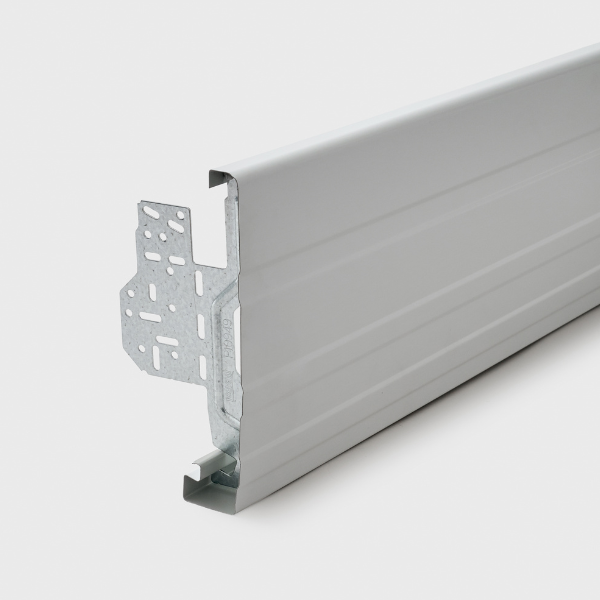

Once you have selected to purchase metal fascia, you will require standard rafter brackets (SRB's). Approximately one every 700mm, to hold the fascia into position. Also you will need spring clips and overstraps to attach the guttering in place, approximately one every 900mm.

How long does delivery take?

Delivery takes approx 3 - 4 working days.



This fascia system is compatible with most of our popular gutters, including QUAD 115 & 150 Hi-Front & Lo-Front and TRIMLINE®.



We use only the best 100% Australian steel for 100% peace of mind; made from BlueScope’s industry-leading brands such as COLORBOND® and ZINCALUME® steel. And, of course, all our products are extensively performance tested, backed with the strength of the BlueScope warranty and can be relied on with total and absolute confidence.

Purchase COLORBOND® Fascia



Constructed from COLORBOND® steel it will not contort, shrink or decay making it essentially maintenance free.



The fascia's may be integrated with most COLORBOND® guttering profiles using our spring clip system which allows fast easy installation and adjustment to falls.



The Metal Fascia System has been designed for ease of use.  A spring clip snaps on to the Fascia and makes fixing of the gutters quick and easy. It is available in custom cut lengths to suit your application.


Suits both tiled and metal roofs

Available in the range of COLORBOND®  colours to suit your needs • Custom cut to prevent waste, which gives extra savings • Designed to integrate perfectly with gutters

Once you have selected to purchase metal fascia, you will require standard rafter brackets (SRB's). Approximately one every 700mm, to hold the fascia into position. Also you will need spring clips and overstraps to attach the guttering in place, approximately one every 900mm.


PLEASE NOTE - MAXIMUM SUPPORT SPACING:


» Steel sheet roofing - 1200mm
» Tile roofing - 600mm



FASCIA INSTALLATION PROCEDURE - SUPPORT SPACINGS

The metal fascia should be supported on rafter clips at 1200mm (maximum centres). Do not use the fascia as an end span support to screw roof sheets to.



Use at least two fixings (Hex Head screws; self drilling screw for steel, or Type 17 for timber) into the pre-punched holes & slots to secure to the rafter. If slots are used then further fixings may be recommended.



STEP 1

Fix a rafter clip at each end of the section, then run a string line from end to end. Attach one or two rafter brackets at mid region of the run, make sure these middle brackets are perfectly in line with the end ones.



STEP 2

Attached the fascia horizontally under each end clip, then flip the fascia forward and lever it over the top of the bracket into the vertical position.



STEP 3

Alter the fascia to the correct position by sliding it along the brackets, then secure the surplus of the intermediate brackets by twisting into fascia first, and then connecting to the rafters. (Notching, holing or distortion of the metal fascia is not recommended.)



STEP 4

When done correctly the fascia should be level around the hole house. Connect all corners and mitres, then the spring clips should be installed to create the fall for the gutter












Select the best Colorbond Colours for the best roofing system.

Roof installation is very important for keeping the safety and integrity of your property intact as it enables you to get the best protection. But for this you need to select trusted Australian- Bluescope steel roofing that is known to be the best roofing material that you can possibly get for your home. It offers longevity, durability and functionality of your roofing system and hence you can select the best roof from among the wide range of Colorbond colours. You need to look for the most visually appealing roof that comes with easy and secure online ordering so that you will have the best roof. Colorbond colours offer the best look to your roof and you will enjoy the benefits of lowest prices on corrugated iron along with fast delivery so that your roof will remain in good condition. You need to have a look at Metal Roofing Online where you will get the best quality roofing and guttering material that will meet your needs and requirements.

Benefits offered by Color bond fascia.

The best way of finishing the roof of your property is with the use of color bond fascia as it allows you to enjoy a high quality option and visually appealing property. This is considered as an economical, durable and low maintenance option that will last for a longer period of time. If you want to create a beautiful and visually appealing space then you will need to carefully select the fascia that will complement the overall look. You will need to visit https://www.metalroofingonline.com.au where you can order the highest quality roofing products at the most affordable price. With the trusted Australian, blue-scope, steel roofing, you can be rest assured that your roof will remain strong and you will get the most protected property. You will also be able to get a kind of living space that will protect you from every kind of risks and dangers that you might face during the day or night. Therefore, if you want to order color bond fascia, you will get it with lowest prices on roofing materials and corrugated iron. You will also be able to get the best quality roof with the help of this product and with fast delivery; it will be delivered to you within a short span of time. There are a large number of benefits offered by color bond fascia, and the most important benefit is that it will complement your property styles and gutter profiles in the best possible manner. You will enjoy using a maintenance free solution that will enhance the functionality and appearance of your overall property. You will get greater strength along with amazing functions of this fascia that will help you get a property that will last for a longer period of time. You don't have to worry about replacement as you will get its benefits for a longer span of time.
